Automating a Complex Workflow: A Real-World Case Study
Automating repetitive tasks is one of the most powerful ways to save time and reduce errors. In this case study, I’ll walk through how I automated the customer on-boarding process at my workplace—cutting deployment time from over an hour to just minutes while improving reliability and consistency.
Problem / Pain Point
Our customer on-boarding workflow was slow, fragmented, and highly vulnerable to human error. Bringing a new client into the system required logging into multiple platforms, gathering configuration data, setting up services, and verifying everything manually. Each step had to be completed in a strict sequence, and even small deviations resulted in mistakes that delayed the process.
Compounding this, the information provided for on-boarding wasn’t standardized—different teams submitted details in different formats, often incomplete or unclear. This led to confusion, back-and-forth communication, and further delays. Even after all the required information was collected and clarified, the actual setup still took hours to complete. The most basic, straightforward configuration routinely consumed at least an hour of manual work.
Tools:
PowerShell: Version 5.1
PowerCLI: Version 13.1.0
VMware Cloud Director API: Version 38.1 & 39.0
NSX-T API Version: 4.1.0.2
Solution / Automation
To address the inefficiencies in the on-boarding workflow, I developed a PowerShell-driven automation tool that provisions complete customer environments inside VMware Cloud Director. The solution integrates PowerShell, PowerCLI, and both the Cloud Director and NSX-T REST APIs to eliminate repetitive manual steps, enforce configuration standards, and create a consistent deployment experience every time.
Rather than navigating between multiple consoles, manually creating resources, and verifying each configuration by hand, the automated workflow handles the entire process end-to-end. This ensures predictable results, reduces the potential for human error, and dramatically shortens the time required to deploy a new customer environment.

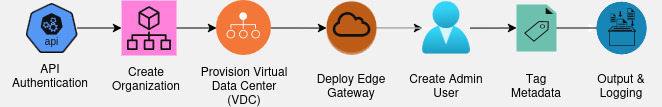

High-Level Workflow
1. Authenticate with the Cloud Director API
The tool securely authenticates using provided credentials, establishing a session with the vCD REST API.
2. Create the Customer Organization
An Organization is generated automatically using predefined standards for resource limits, policies, and naming conventions.
3. Provision the Virtual Data Center (vDC)
The script selects the appropriate Provider vDC and creates a new tenant vDC, applying the correct compute and storage policies.
4. Deploy the Edge Gateway
The automation deploys and configures an NSX-T–backed Edge Gateway to establish the customer’s networking foundation.
5. Create Initial Users
Initial tenant users are added with the appropriate roles and permissions. Credentials are auto-generated to streamline the setup process while maintaining security.
6. Apply Metadata and Standard Labels
Consistent metadata (customer ID, customer name, etc.) is applied across vCD resources to support auditing, tracking, and internal tooling.
7. Output & Logging
The tool outputs clear success/failure messages and logs API responses for transparency and troubleshooting during or after deployment.
Impact / Results
The automation delivered immediate and measurable results across the entire on-boarding process. What previously took more than an hour of focused manual work can now be completed in just a few minutes—an improvement of over 90% in deployment time. This dramatically increased the team’s capacity, allowing engineers to complete multiple on-boardings in the time it once took to finish one.
By embedding validation checks directly into the workflow, the tool also reduced configuration errors and eliminated the guesswork caused by inconsistent input data. Every step is executed according to strict deployment standards, ensuring that each customer environment is built the same way every time.
Overall, the automation improved reliability, reduced engineer workload, and sped up customer delivery timelines. It freed the team from repetitive tasks, minimized troubleshooting, and improved the customer experience by enabling faster, more consistent on-boarding.
Challenges Encountered
Even with a clear goal, several challenges surfaced during development. One of the biggest was ensuring compatibility between PowerShell, PowerCLI, and the different versions of the Cloud Director and NSX-T APIs. Each endpoint behaved slightly differently, and documentation gaps required careful testing and validation to avoid unexpected behavior.
Another challenge was standardizing the input data. Because information arrived in different formats and with varying levels of completeness, the automation needed strong validation logic and guardrails to prevent failures. Designing these checks took time but ultimately became one of the tool’s greatest strengths.
Lessons Learned
Building this automation highlighted the importance of investing early in validation and input standardization. Addressing data quality upfront eliminated a significant number of errors and ensured the automation remained stable and predictable across many deployments.
Another key takeaway was the value of small, incremental testing during development. Working step-by-step with API calls and modular functions made debugging far easier and helped catch inconsistencies before they became larger issues.
Finally, this project reinforced how impactful automation can be—not only in saving time, but in improving the reliability and confidence of the team performing the work.
Closing Summary
Streamlining the customer on-boarding process through automation dramatically improved speed, accuracy, and consistency. What was once a manual, error-prone workflow transformed into a reliable, fully automated deployment pipeline. The combination of PowerShell, PowerCLI, and the vCD/NSX-T APIs proved to be a powerful, flexible solution that scaled effortlessly across new customers.
The project not only saved hours of engineering time each week, but also improved customer delivery timelines and reduced operational friction. It serves as a strong example of how targeted automation can create meaningful real-world impact—and it continues to provide value with every new deployment.
